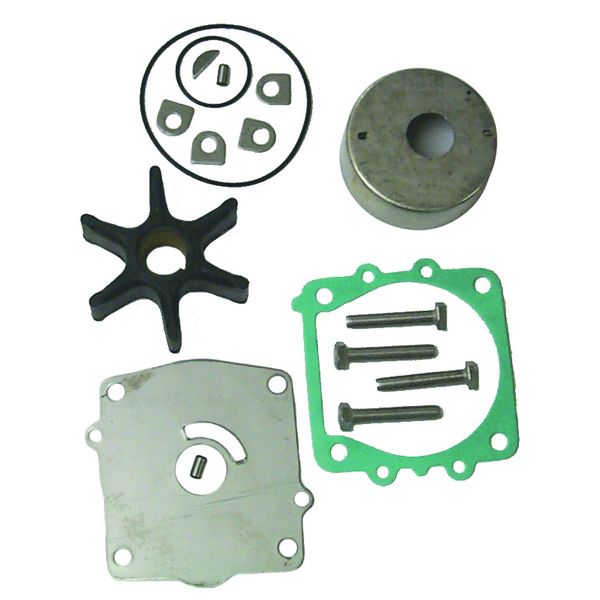

3372 - Water Pump Kit (CC-018-33720)

18-3372 WATER PUMP KIT Without Housing

Replaces: 6E5-W0078-01-00

CONTAINS:

Part # - Description - O.E.# - Qty.

• 18-0244 - Gasket, Water Pump - 6E5-44315-A0-00 - 1
• 18-0256 - Bolt - 97095-08045-00 - 4
• 18-3071 - Impeller - 6E5-44352-01-00 - 1
• 18-3302 - Key, Impeller - 90280-04M05-00 - 1
• 18-3344 - Plate, Wear - 6E5-44323-00-00 - 1
• 18-7483 - O-Ring - 93210-37M67-00 - 1
• 18-7485 - O-Ring - 93210-86M38-00 - 1
• NSS - Pin, Dowel - 93606-12019-00 - 2
• NSS - Washer, Bolt - 90209-08M02-00 - 4
• NSS - Cup, Insert - 6E5-44322-00-00 - 1
