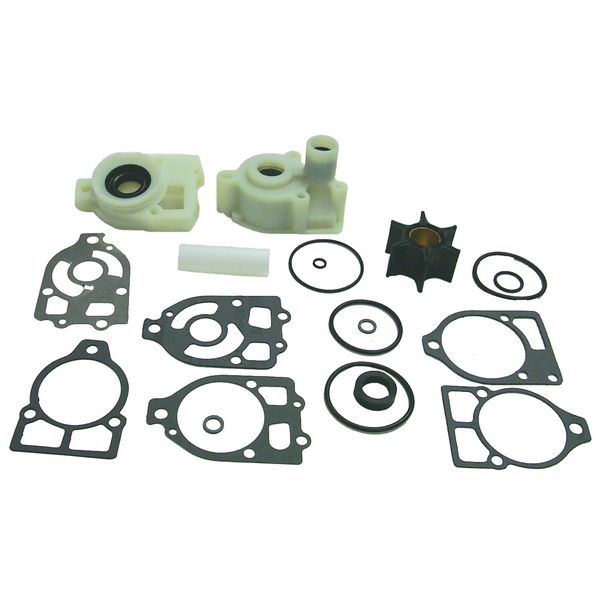

47-3317 Mercury Water Pump Kit, With Base 18-3417 (18-3317)

18-3317 - WATER PUMP KIT

For: #1/R Units without flush - S/N 2763442-6854392 -

Please note, the base used with this kit is the 18-3417 which is the same as the OEM part number 46-57234A 1.

If you are purchasing this kit please confirm that your base matches the 18-3417 or 46-57234A 1.

CONTAINS

Part # Desc. O.E. # Qty.

18-3109 Water Tube 23-29804 1

18-3017 Impeller 47-89984 1

18-3116 Housing 46-96148A1 1

18-2919 Water Pump Base to Gear Housing Gasket 27-42631-1 1

18-3417 Water Pump Base 46-57234A1 1

18-3110 Grommet 26-38970 1

18-2945 Gear Housing Drain Screw Gasket 12-19183 2

18-2826 Water Pump Base to Gear Housing Gasket 27-85610-1 1

18-2914 Lower Water Pump to Wear Plate Gasket 27-85608-1 1

18-2915 Upper Water Pump to Wear Plate Gasket 27-85609-1 1

18-2944 Seal Ring 26-45577 1

18-3117 Plate 32435 1

18-7158 O-Ring 25-30613 1

18-7162 O-Ring 25-33145 1

18-7173 O-Ring 25-30224 1

18-7176 O-Ring 25-90011 1

18-2801 Water Pump Gasket 27-32438 1

18-7196 O-Ring 25-38099 1

18-7426 O-Ring 35-30271 1

18-2919 Water Pump Gasket 27-46231-1 1

Sierra Marine 18-3317 - Mercury Water Pump Kit, With Base 18-3417 is equivalent to parts:

• 96148A8 Mercury Marine
• 46 96148A 8 Mercury Marine
